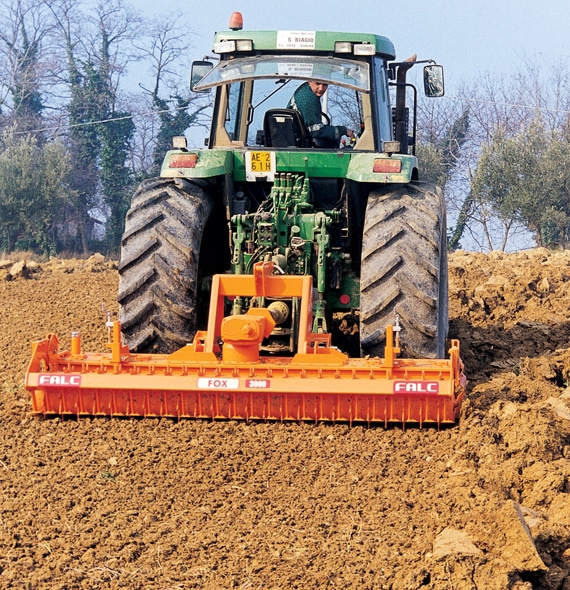

Falc Fox

Falc Fox
  • 3pt linkage, centrally mounted
  • Floating clevis hitch with Cat 2 pins (Cat 2/3 pins on the 3500 & 4000)
  • Drive shaft with 1 3/8″ 6 spline yoke and fitted with friction plate clutch
  • 140 hp, single speed gearbox
  • Rotor speeds of: 348 rpm at 540 rpm PTO or 362 rpm at 1000 rpm PTO (Additional gears for other speeds available as an option)
  • Front square tube 80mm x 80mm x 6mm on 2500 & 3000 and 80mm x 120mm x 6mm on 3500 & 4000
  • Tapered Roller Bearings on all rotor output shafts
  • Quick release tynes
  • Rear PTO shaft for ancillary equipment
  • Rear levelling bar with manual ‘screw’ type adjustment system
  • Round tyne mounting flange (to which an optional stone protector can be fitted)
  • Depth control via 8 tube Cage Roller
  • Side protection shields
  • Full CE safety guarding on all models
Series A mm. Kg. LBS. N. HP
2500 2553 945 2083 10 60-120
3000 3053 1060 2336 12 60-120
Series A mm. B mm. Kg. LBS. N.
Fox Vigneron 1000 1014 1070 410 903 4
Fox Vigneron 1300 1260 1316 450 992 5
Fox Vigneron 1500 1506 1562 510 1124 6
Fox Vigneron 1800 1752 1808 570 1257 6
Fox Vigneron 2000 1998 2112 660 1455 8
Fox Vigneron 2300 2244 2358 710 1565 9
Fox Vigneron 2500 2490 2549 760 1675 10
Fox Vigneron 3000 2982 3049 860 1896 12
